TRAKMOTIVE BM8177

Product Details Attribute

TrakMotive is a recognized aftermarket leader of CV axles. TrakMotive axles are designed from the ground up to be the highest quality, most reliable and durable CV axles available in the aftermarket.

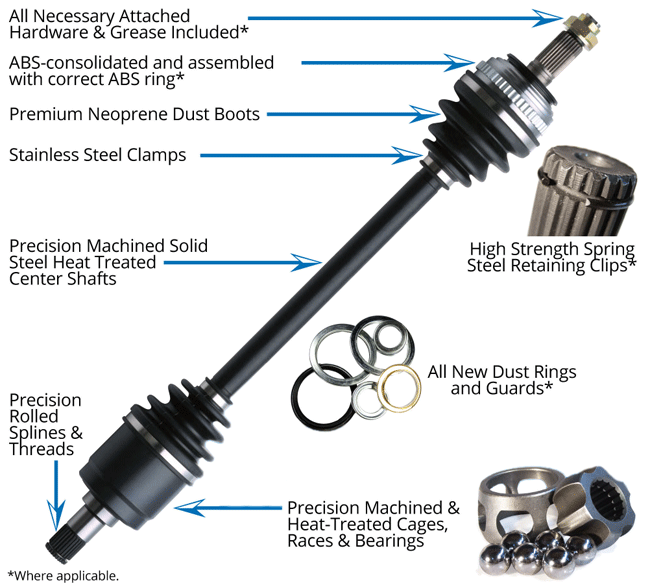

Features & Benefits:

ABS-Consolidated & Assembled with the correct ABS Tone Ring*
Heat-Treated & Precision Machined Solid Steel Center Shafts
Heat-Treated Machine-Ground Cages, Races & Bearings
Assembled with High-Quality Neoprene Dust Boots & Stainless Steel boot clamps
Includes necessary attaching hardware and grease*
Includes new dust rings & guards*
High Strength Spring Steel Retaining Clips*

*Where required

Installation Tip: If the part comes with an ABS Ring, but your vehicle does not have ABS, you may leave the ring in place if it does not interfere with installation.

Additional Resources

Installation Tips

Top 5 Noise Symptoms Associated w/ Worn CV Shafts

Alternate/OEM Part Number(s)

{Alternate Inventory Numbers: BM-8177}

Warranty Information

TRAKMOTIVE Warranty Information:Limited LifetimeWarranty Details

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Abs Tone Ring Included	No
Axle Nut Included	Yes
Boot Material	CR
Inboard Joint Type	Male
Outboard Joint Type	Conventional
Axle Nut Length (MM)	40.99
Inboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number of Outboard Splines	28
Outboard Shaft Connection Style	Spline
Overall Compressed Length (IN)	31.5
Overall Compressed Length (MM)	800
Axle Nut Thread Size	M24x1.5
Axle Nut Head Type	Hex
Axle Nut Height (IN)	.67
Axle Nut Height (MM)	17
Axle Nut Hex Size (IN)	1.16
Axle Nut Hex Size (MM)	29.5
Axle Nut Length (IN)	1.61
Axle Nut Locking Type	Standard
