TrakMotive is a recognized aftermarket leader of CV axles. TrakMotive axles are designed from the ground up to be the highest quality, most reliable and durable CV axles available in the aftermarket.

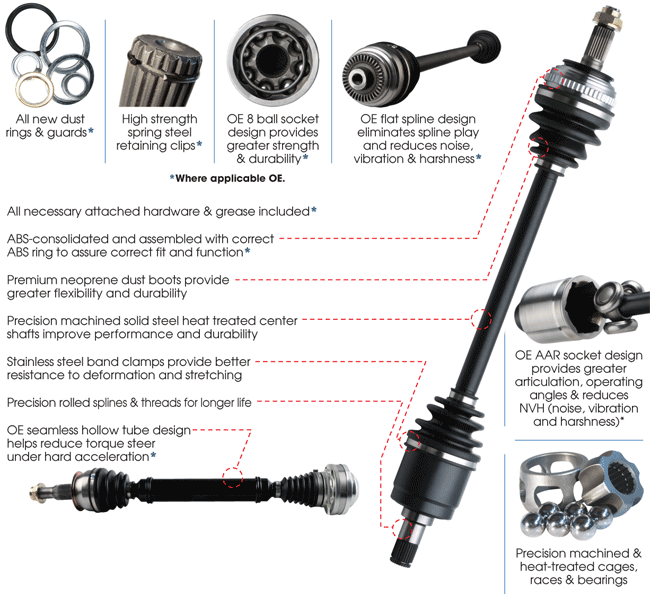

Features & Benefits:
- ABS-Consolidated & Assembled with the correct ABS Tone Ring to assure correct fit and function*
- Heat-Treated & Precision Machined Solid Steel Center Shafts improve performance and durability
- Heat-Treated Machine-Ground Cages, Races & Bearings
- Assembled with Premium Neoprene Dust Boots (for greater flexibility and durability) & Stainless Steel band clamps (for better resistance to deformation and stretching)
- Includes necessary attaching hardware and grease*
- Includes new dust rings & guards*
- Precision-rolled splines & threads for longer life
*Where requiredAdditional Features (Depending on Application):
- OE AAR socket design provides greater articulation, operating angles & reduces NVH (noise, vibration and harshness)
- OE 8 ball socket design provides greater strength & durability
- OE flat spline design eliminates spline play and reduces noise, vibration & harshness
- OE seamless hollow tube design helps reduce torque steer under hard acceleration
Installation Tip: If the part comes with an ABS Ring, but your vehicle does not have ABS, you may leave the ring in place if it does not interfere with installation.
Additional Resources
Installation TipsTop 5 Noise Symptoms Associated w/ Worn CV Shafts
Alternate/OEM Part Number(s)
{Alternate Inventory Numbers: BM-8166}
Warranty Information
TRAKMOTIVE Warranty Information:Limited LifetimeWarranty Details
CAPA CERTIFIED or NSF CERTIFIED
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications |
| Abs Tone Ring Included |
No |
| Axle Nut Included |
No |
| Boot Material |
CR |
| Inboard Joint Type |
Male |
| Outboard Joint Type |
Flat Spline |
| Inboard Shaft Connection Style |
Spline |
| Number Of Inboard Splines |
27 |
| Number of Outboard Splines |
31 |
| Outboard Shaft Connection Style |
Spline |
| Overall Compressed Length (IN) |
21.65 |
| Overall Compressed Length (MM) |
550 |
