Features:
- Restores proper anti-roll bar performance and crisp handling
- Eliminates worn bushing clunk and rattle
- Quality materials resist extreme undercar heat and ozone
- Precision-molded to OE dimensions for easy installation
- Save money by replacing only the worn bushing
Sway Bar Bushing diameter can be within 1mm of your Sway Bar diameter. The clamping force of the bracket will account for the variance.
How To Determine Stabilizer (Sway) Bar Diameter

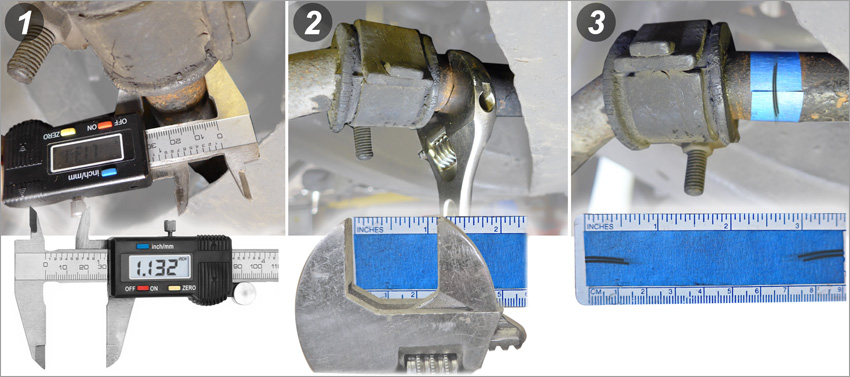

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.
- Use a digital caliper or micrometer for a precise reading
- Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
- Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.
Attention California Customers - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Alternate/OEM Part Number(s)
{Alternate Inventory Numbers: URO017029}
Warranty Information
Warranty Information:24 Month / Unlimited Mile Limited
CAPA CERTIFIED or NSF CERTIFIED
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications |
| Bolts Included |
No |
| Color |
Black |
| Dust Boot Included |
No |
| Length (MM) |
39.6 mm |
| Material |
NR |
| Hardware Included |
No |
| Height |
34 mm |
| Length |
39.6 mm |
| Width |
30.79 MM |
| Inside Diameter |
12.9 mm |
| Inside Diameter (MM) |
12.9 |
| Bushings Included |
No |
| Bracket Included |
No |
| Nuts Included |
No |
| Washers Included |
No |
| Link Included |
No |
| Lock Nuts Included |
No |
| Number of Bushings |
1 |
| Sleeves Included |
No |
