ENERGY SUSPENSION 125104G

Energy Suspension offers the finest polyurethane suspension components in the automotive aftermarket. They manufacture their products in-house from the initial R&D stages, to chemical formulation, molding and final packaging to control every aspect of the manufacturing process. This ability produces a genuine American-made product.

HYPER-FLEX™ is Energy Suspension's unique and technically advanced chemical formulation performance polyurethane. HYPER-FLEX™ has been used on Energy's products that have been awarded 9 U.S. Patents.

How To Determine Stabilizer (Sway) Bar Diameter

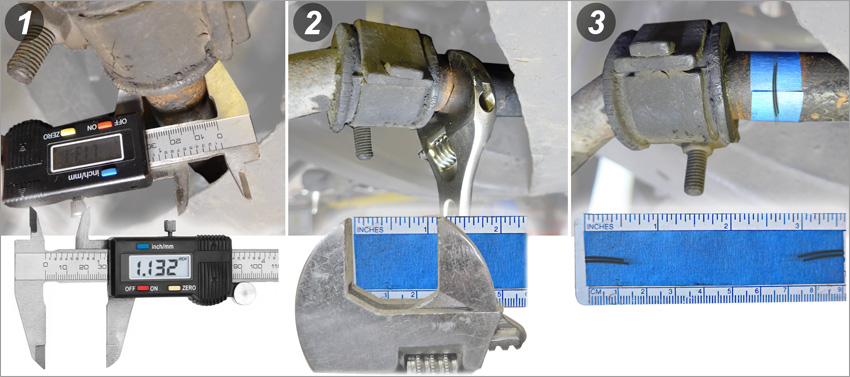

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.

1. Use a digital caliper or micrometer for a precise reading
2. Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
3. Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.

Additional Resources

ENERGY SUSPENSION Warranty Information:7 Years / 750,000 Miles

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
