TrakMotive is a recognized aftermarket leader of CV axles. TrakMotive axles are designed from the ground up to be the highest quality, most reliable and durable CV axles available in the aftermarket.

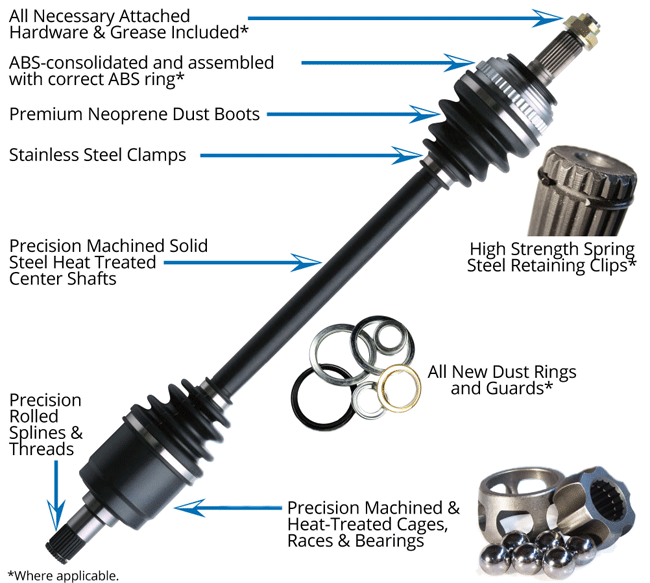

Features & Benefits:
Additional ResourcesTRAKMOTIVE Warranty Information:Limited LifetimeWarranty Details
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications | |
| Abs Tone Ring Included | Yes |
| Axle Nut Included | Yes |
| Boot Material | CR |
| Inboard Joint Type | Bolt-on |
| Outboard Joint Type | Conventional |
| Axle Nut Length (MM) | 33.8 |
| Inboard Shaft Connection Style | Bolt-on |
| Number of Outboard Splines | 27 |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (IN) | 24.45 |
| Overall Compressed Length (MM) | 621 |
| Axle Nut Thread Size | M24x1.5 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (IN) | .67 |
| Axle Nut Height (MM) | 17 |
| Axle Nut Hex Size (IN) | 1.67 |
| Axle Nut Hex Size (MM) | 29.5 |
| Axle Nut Length (IN) | 1.33 |
| Axle Nut Locking Type | Standard |
| ABS Ring Type | Window |
| Number Of Inboard Joint Bolt Holes | 6 |
| Inboard Bolt Head Size (IN) | .5 |
| Inboard Bolt Head Size (MM) | 13 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (IN) | 1.77 |
| Inboard Bolt Length (MM) | 45.3 |
| Inboard Bolt Thread Size | M8x1.25 |
| Number Of Inboard Shaft Bolts | 6 |
| ABS Ring Tooth Count | 48 |
