GPD 9643146A

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: GPD
SKU:{{ product.sku }}
Part Number: {{ product.model }}

{{ variable.name }}

{{ value.name }}
Features & Benefits:
  • All components are designed to meet/exceed OE fit, form, and function
  • Compressor is 100% leak tested with helium spectrometers
  • Compressor is Prefilled with OE-Specified Oil (oil charge requirements should always be verified per vehicle manufacturer specifications)
  • Includes all the parts needed to do the job right the first time
  • 200,000 mile durability test on every new compressor design
Benefits of an A/C Compressor & Component Kit

Purchasing and replacing just the A/C Compressor is less expensive up-front, but may lead to more repairs and expenses down the road. A complete A/C Compressor & Component Kit provides added benefits:

  • Extend Service Life: Brand new components, free of contaminants help protect your new A/C Compressor from premature failure.
    • Why Replace the A/C Condenser? 1996 and newer A/C Condenser designs are difficult (often impossible) to thoroughly flush, because of their small, multi-pass tube construction. A partially clogged / contaminated A/C Condenser can force your new compressor to work harder, and lead to premature failure.
  • Fulfill Warranty Requirements: A/C Compressors returned under warranty must show proof of purchase of the A/C Orifice Tube (or A/C Expansion Valve) and A/C Receiver Drier / Accumulator.
  • Save Time & Money: Don't risk having to re-do the repair - do the job right the first time!
Service Tip: Once filled with oil, place or hold the new A/C Compressor with the front seal facing down for 1-3 minutes. This will help coat the seal with oil - if this seal is not lubricated before installation, refrigerant may leak.
GPD 6512226 Prefilled w/ OE-Specified Oil Info
Flag indicates this part fits vehicles sold in the USA. It does not indicate where the part was made -- manufacturers produce parts in multiple factories worldwide. Flag indicates this part fits vehicles sold in Canada. It does not indicate where the part was made -- manufacturers produce parts in multiple factories worldwide. Flag indicates this part fits vehicles sold in Mexico. It does not indicate where the part was made -- manufacturers produce parts in multiple factories worldwide. Nippondenso; Electric Control Valve Style Compressor; w/ 5 Groove Pulley; w/ 7SB16C Compressor
GPD 3443C Info
GPD 3411445 Info
GPD 1321306 Info
Quantity Components that come in this kit

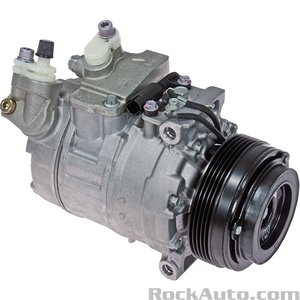

1 A/C Compressor
GPD 6512226close
Part image
Part image

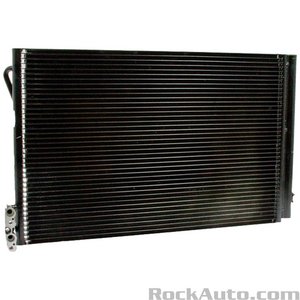

1 A/C Condenser
GPD 3443Cclose
Part image
Part image

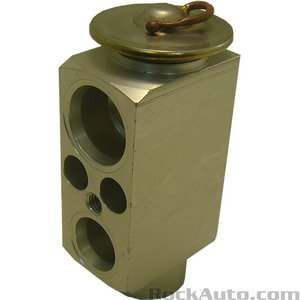

1 A/C Expansion Valve
GPD 3411445close
Part image
Part image

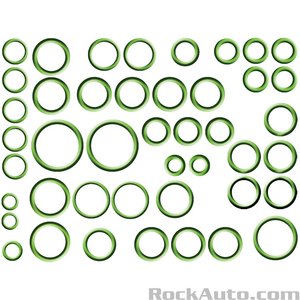

1 A/C System O-Rings / Seals
GPD 1321306close
Part image
Part image
Which A/C Compressor Do I Need?

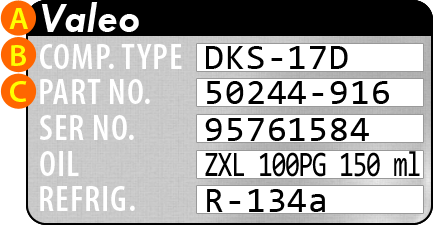

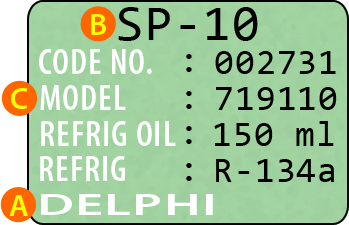

Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor. Locate the tag on the back or side of your existing compressor. Look for information like A Manufacturer Name, B Compressor Type / Style, and C Model Number / Part Number.

AC Label Sample 1 AC Label Sample 2
Videos

Replacing Your A/C Compressor

Additional Resources

Late Model Condensers Cannot be Flushed... Only Replaced
Compressor Installation Insert


Warranty Information

GPD Warranty Information:12 months. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.



CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Pulley Groove Quantity 5
Clutch Included Yes
Coil Voltage 12 2H
Compressor Type 7SBU16C
