Features:
- Premium Materials -- Made from high-quality natural rubber material for durability and ride performance
- Extended Service Life -- Less prone to splitting, discoloring or cracking with age for long life
- Precise Engineering -- Optimized for quiet operation and resistance to wear, salt, road grime and oils
- Rigorous Testing -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Sway Bar Bushing diameter can be within 1mm of your Sway Bar diameter. The clamping force of the bracket will account for the variance.
How To Determine Stabilizer (Sway) Bar Diameter

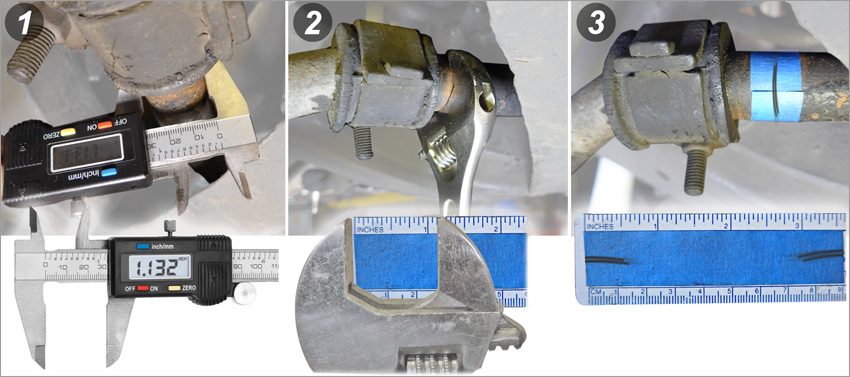

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.
- Use a digital caliper or micrometer for a precise reading
- Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
- Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.
Alternate/OEM Part Number(s)
OEM / Interchange Numbers: 31351094556, 31351097179, 33556751267, 33556751269
Warranty Information
Warranty Information:Limited Lifetime
CAPA CERTIFIED or NSF CERTIFIED
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications |
| Mounting Hardware Included |
No |
| Material |
Rubber |
| Outside Diameter |
2.320 in |
| Height |
2.210 in |
| Length |
2.160 in |
| Inside Diameter |
0.920 IN |
| Bushing Quantity |
2 |
| Bar Diameter |
0.920 IN |
