Features & Benefits:
- Only the highest grade materials
used in production
- Extensive in-house laboratory and
assembly-line testing
- Drop-in fit for easy installation
- Equipped with accessory
packs to accommodate various
original equipment models
- Meet or exceed OE specifications
for fit, form, and function
- Transit tested with robust packaging to
shield part from damage in shipping
- Transmission and/or oil coolers included for vehicle performance
& product longevity, where originally equipped
Service Tip: If you are experiencing unexplained or reoccurring radiator core leaks, or notice dark spots on your failed radiator core,
test your coolant for Electrolysis. If detected, correct the source of the problem before replacing your failed radiator to prevent repeat failure.

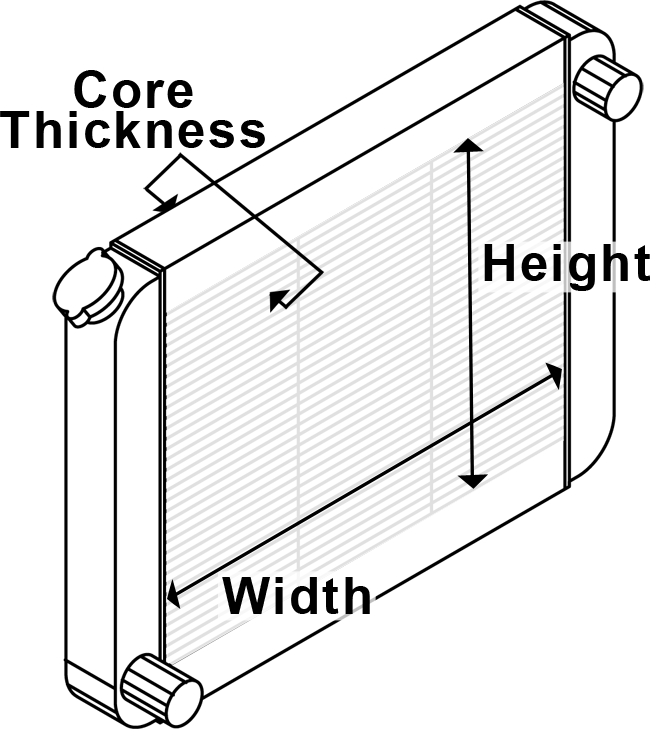

Measurement Guide
Cooling System Maintenance | Tips & Tools
Without regular maintenance, cooling system components will degrade and fail prematurely, which can lead to costly engine damage. Protect your engine with simple preventative maintenance:
- Completely drain and flush the system using Cooling System Flush prior to installation. Flushing the system is critical to prevent system contamination and failure.
- Consider replacing the Radiator Hoses (and Hose Clamps), Thermostat and Radiator Cap as part of routine preventative maintenance. System contamination can cause these parts to degrade and fail over time, which can lead to severe engine damage from overheating.
- Refill radiator with fresh Coolant / Antifreeze according to the volume and formula specified in your Owner's Manual. Inspect levels and condition every year.
Additional Resources
Design UpgradeReturns Not Covered by WarrantyInstallation InstructionsTech NoteHow to Measure a RadiatorRadiator WarrantyAttention California Customers - Y
Alternate/OEM Part Number(s)
OEM / Interchange Numbers: 1436242, 17117513922, 17119071517, 17119071518, 17119071519, 7513922, 9071518, 9071519, CU2635
Warranty Information
Warranty Information:24 Months
CAPA CERTIFIED or NSF CERTIFIED
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications |
| Cap Included |
No |
| Core Material |
Aluminum |
| Tank Material |
Plastic |
| Transmission Oil Cooler Included |
No |
| Radiator Flow Type |
Cross Flow |
| Core Rows |
1 |
| Core (IN) |
22-13/16 x 17-3/8 x 1-1/16 |
| Inlet / Outlet Header (IN) |
18-7/16 x 2-1/16 |
| Inlet / Outlet (IN) |
1-1/2 |
| Mount Type |
Cradle / Saddle Mount |
| Engine Oil Cooler Included |
No |
| Fan Included |
No |
