Centric Suspension Bushings are manufactured using advanced synthetic compounds that resist extreme environmental conditions and heat, while providing optimal performance and extended service life.
Features & Benefits:
- Advanced synthetics match OE specifications and materials
- Application specific designs guarantee correct fit and function
- Restore vehicle handling dynamics and responsiveness
Sway Bar Bushing diameter can be within 1mm of your Sway Bar diameter. The clamping force of the bracket will account for the variance.
How To Determine Stabilizer (Sway) Bar Diameter

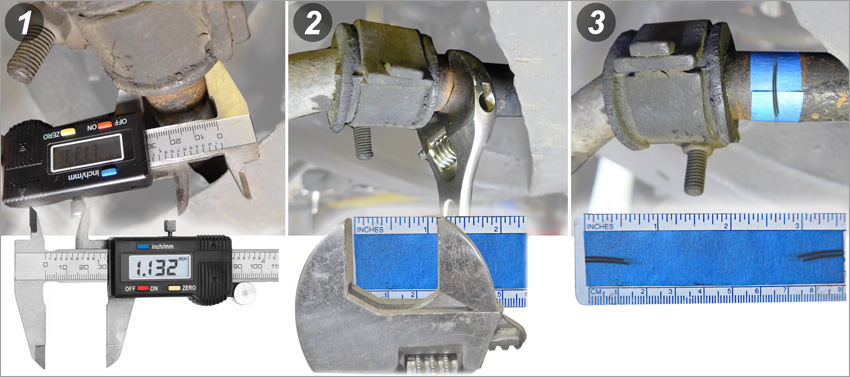

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.
- Use a digital caliper or micrometer for a precise reading
- Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
- Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.
Attention California Customers - WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Alternate/OEM Part Number(s)
{Alternate Inventory Numbers: 602.34023}
CAPA CERTIFIED or NSF CERTIFIED
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
