RAYBESTOS 918AM980654R2

Product Details

Raybestos R-Line+ painted rotors use a resin-modified material that is chemically resilient. The painted hat and edges help resist corrosion.Features:

Painted hat & edges provides corrosion resistance
Superior surface finish for consistent braking
OE vane design and plate thickness for heat capacity and strength
Advanced metallurgy for structural strength and heat transfer
Low initial lateral run-out and disc thickness variation for smooth, vibration free braking
Precision balance for vibration free performance
Brake pads are slotted and chamfered to match OE design leading to reduced noise, vibration, harshness
Brake pads include premium layered steel shims
Hardware included (where applicable) for ease of installation

Installation Tips

Suspend the caliper from the suspension using a Caliper Hanger to prevent damage to the brake hose
Before installing the rotor, clean the hub face with a Wire Brush to remove rust buildup and apply Copper Anti Seize to prevent future buildup. Rust or debris on the hub can cause rotor runout and lead to wheel vibration
Apply brake lube to caliper pins, clips, the edges of the brake pad mounting tabs, and the back side of the brake pads to ensure noise free braking. DO NOT apply lube to the friction side of the brake pads
Use a Caliper Piston Compressor to retract the caliper piston(s) and make room for the new, thicker brake pads
Open the master cylinder reservoir during piston compression to prevent pressure buildup. Keep an eye on the Brake Fluid level to ensure it does not overflow
After the job is complete, pump the brake pedal several times to push the caliper piston back up against the pads to ensure proper brake function

RAYBESTOS R-Line+; Painted Hat & Edge For Rust Resistance Info

Flag indicates this part fits vehicles sold in the USA. It does not indicate where the part was made -- manufacturers produce parts in multiple factories worldwide.

Flag indicates this part fits vehicles sold in Canada. It does not indicate where the part was made -- manufacturers produce parts in multiple factories worldwide.

Front; Rotor Diameter 312mm

RAYBESTOS R-Line; Semi-Metallic Info

Front; Thru 8/09; 312mm Rotor Diameter

Quantity

Components that come in this kit

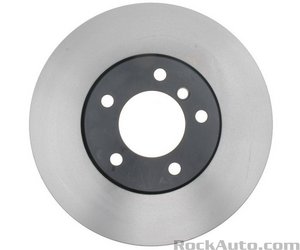

Rotor

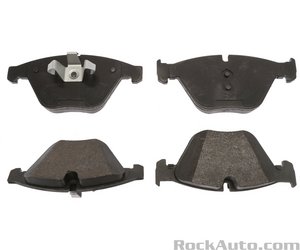

Brake Pad

Warranty Information

RAYBESTOS Warranty Information:Limited Lifetime: All products except R-Line Calipers. 18 Months / 18,000 Miles: R-Line Calipers. Warranty covers defects in materials and workmanship. Normal/uneven wear is not covered.

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
