DELPHI TD5117W

Product Details Attribute

Thanks to their good damping properties and excellent load carrying capabilities, Delphi Technologies bushings absorb unwanted vibrations and sound, providing a comfortable and quiet ride, as well as improving vehicle stability and safety.

Since bushings are subject to high dynamic stresses day-in, day-out, Delphi Technologies only ever uses the highest quality materials. By carefully balancing the precise quantities of steel and rubber, Delphi Technologies bushings provide the optimum combination of strength, flexibility and noise reduction, tailored to the application they fit.

Sway Bar Bushing diameter can be within 1mm of your Sway Bar diameter. The clamping force of the bracket will account for the variance.

How To Determine Stabilizer (Sway) Bar Diameter

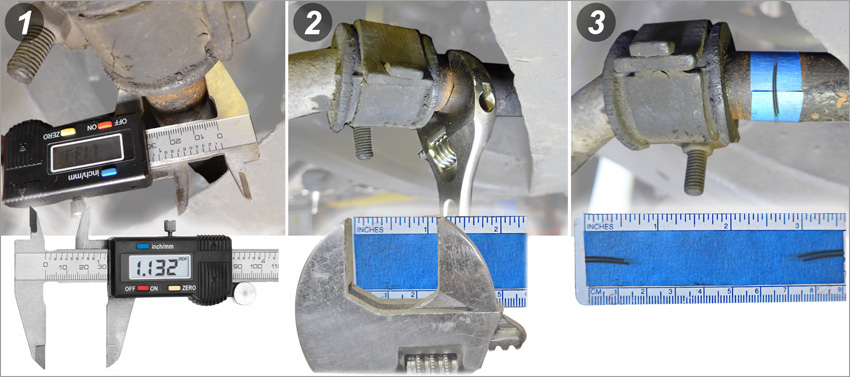

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.

Use a digital caliper or micrometer for a precise reading
Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.

Attention California Customers - WARNING: This product can expose you to chemicals including Carbon Black, which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more infor

Alternate/OEM Part Number(s)

OEM / Interchange Numbers: 33536765584

Warranty Information

Warranty Information:Limited Lifetime

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Mounting Hardware Included	No
Color	Black
Grease Fitting Included	No
Height (MM)	45.8
Material	Rubber
Width (MM)	42.5
Height (IN)	1.803
Width (IN)	1.673
Inside Diameter (IN)	0.393
Inside Diameter (MM)	10.0
Position(s)	Rear To Frame, Rear. For the position specific to your vehicle, refer to the Application tab.
